Default Settings on Studio

Default Settings on Studio

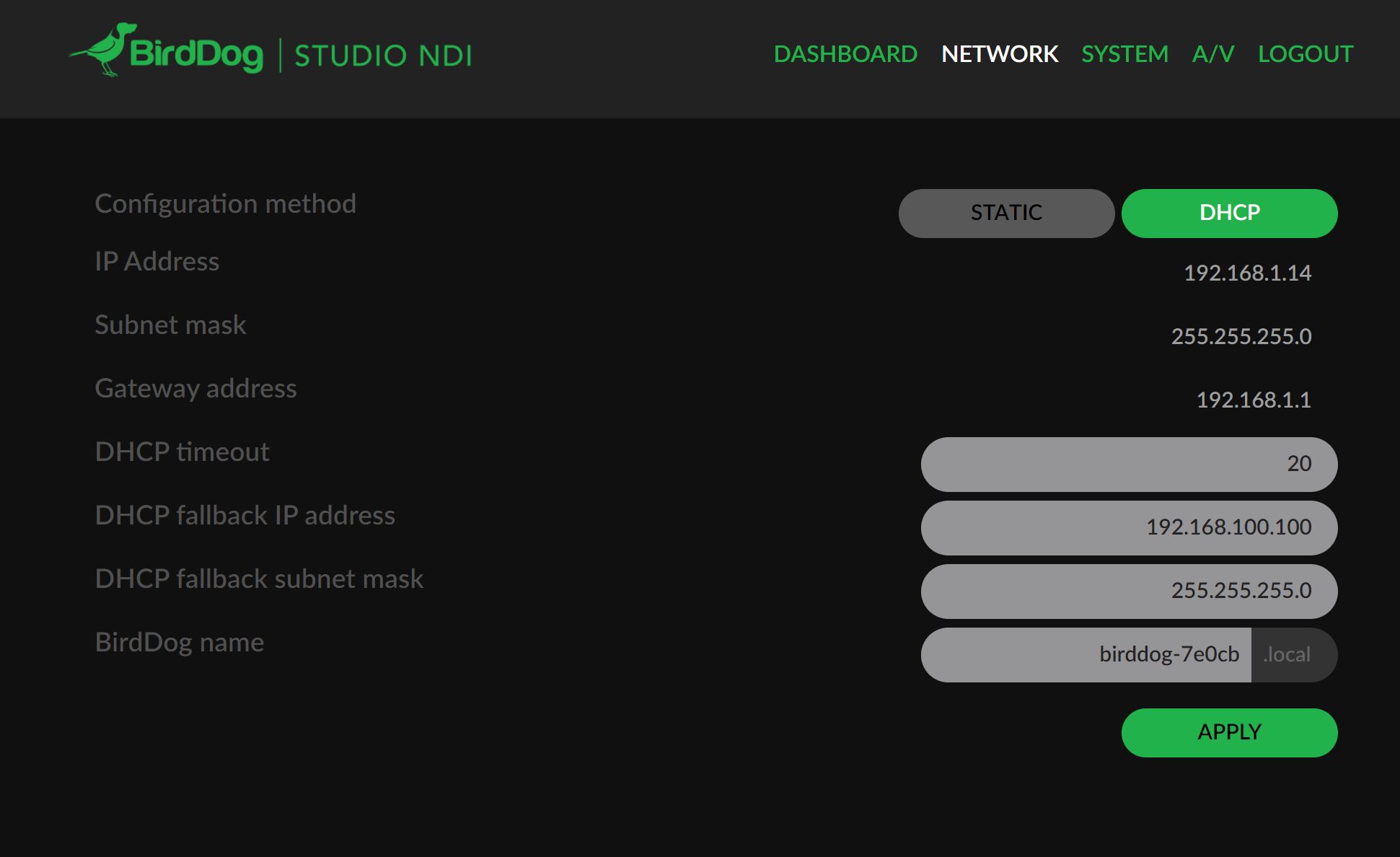

Network

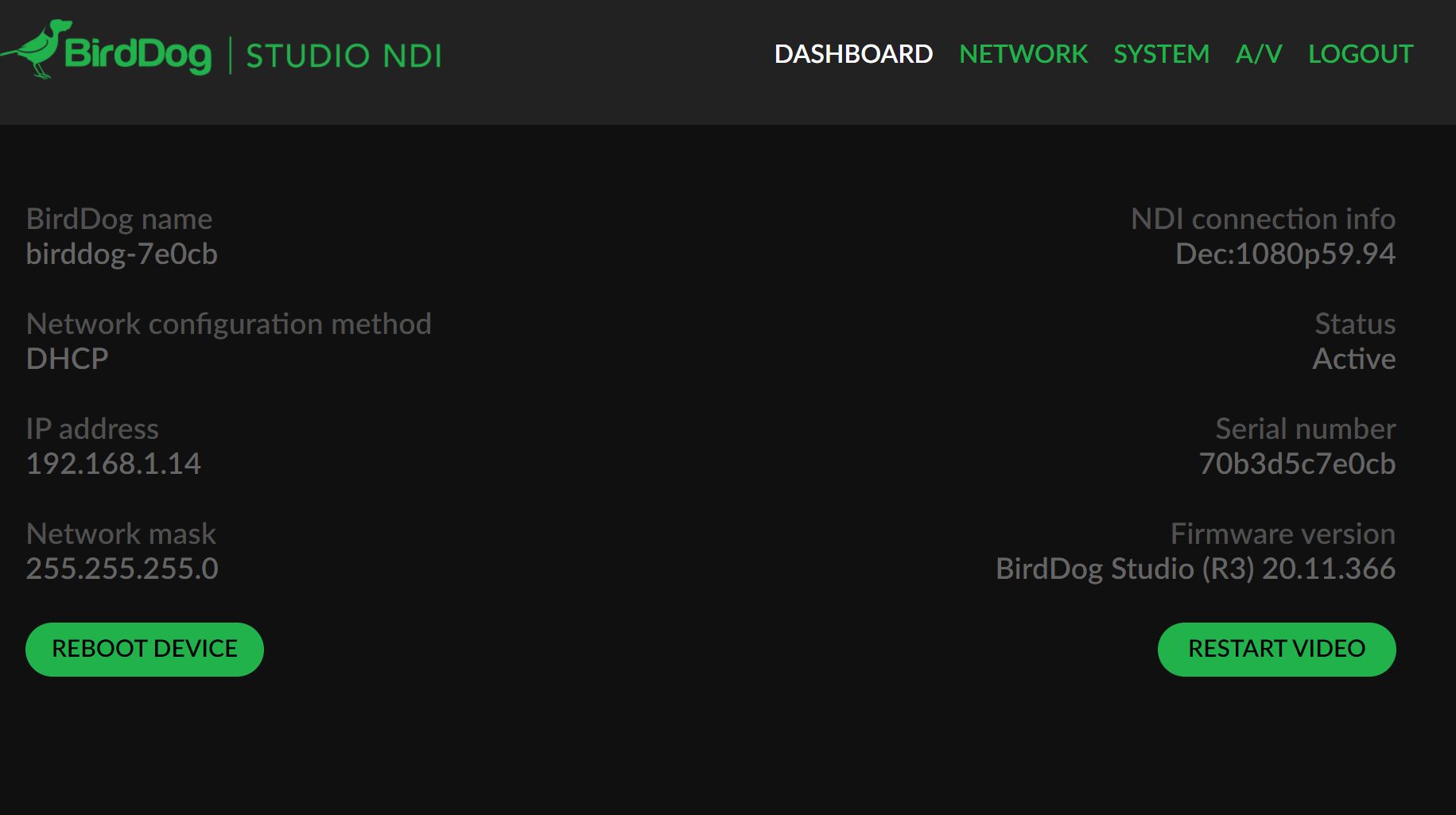

Dashboard

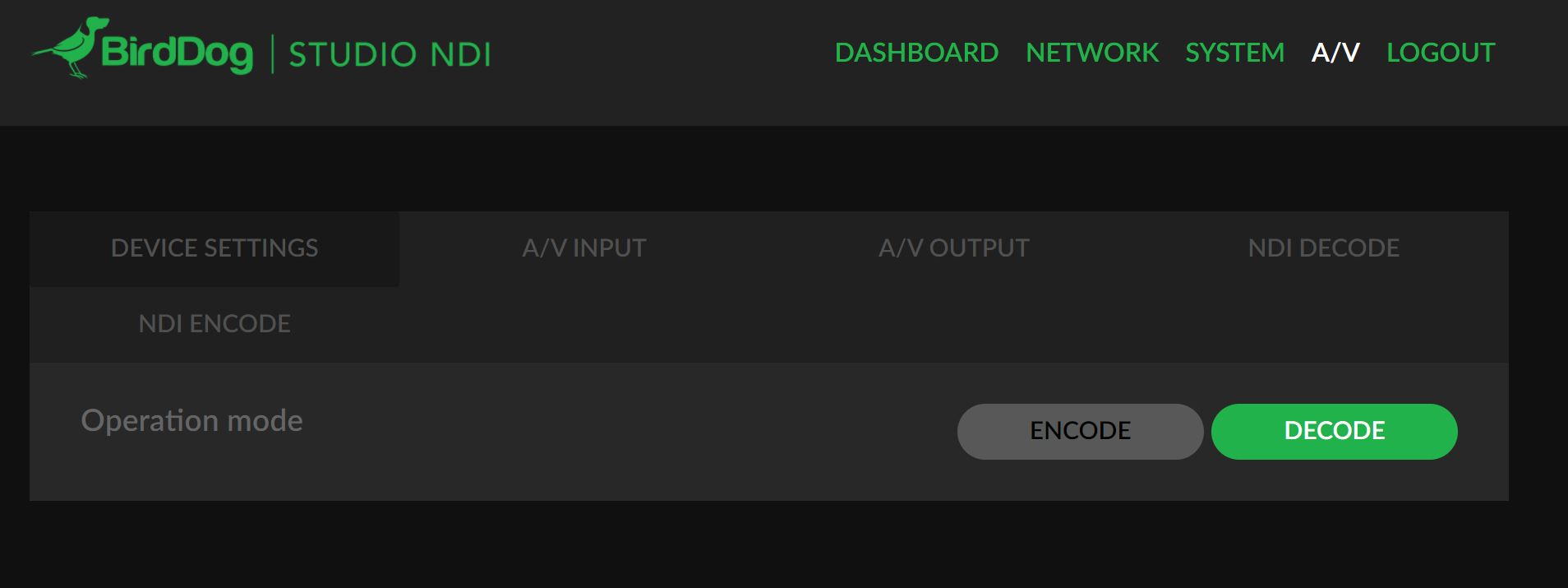

A/V ~ Device Settings

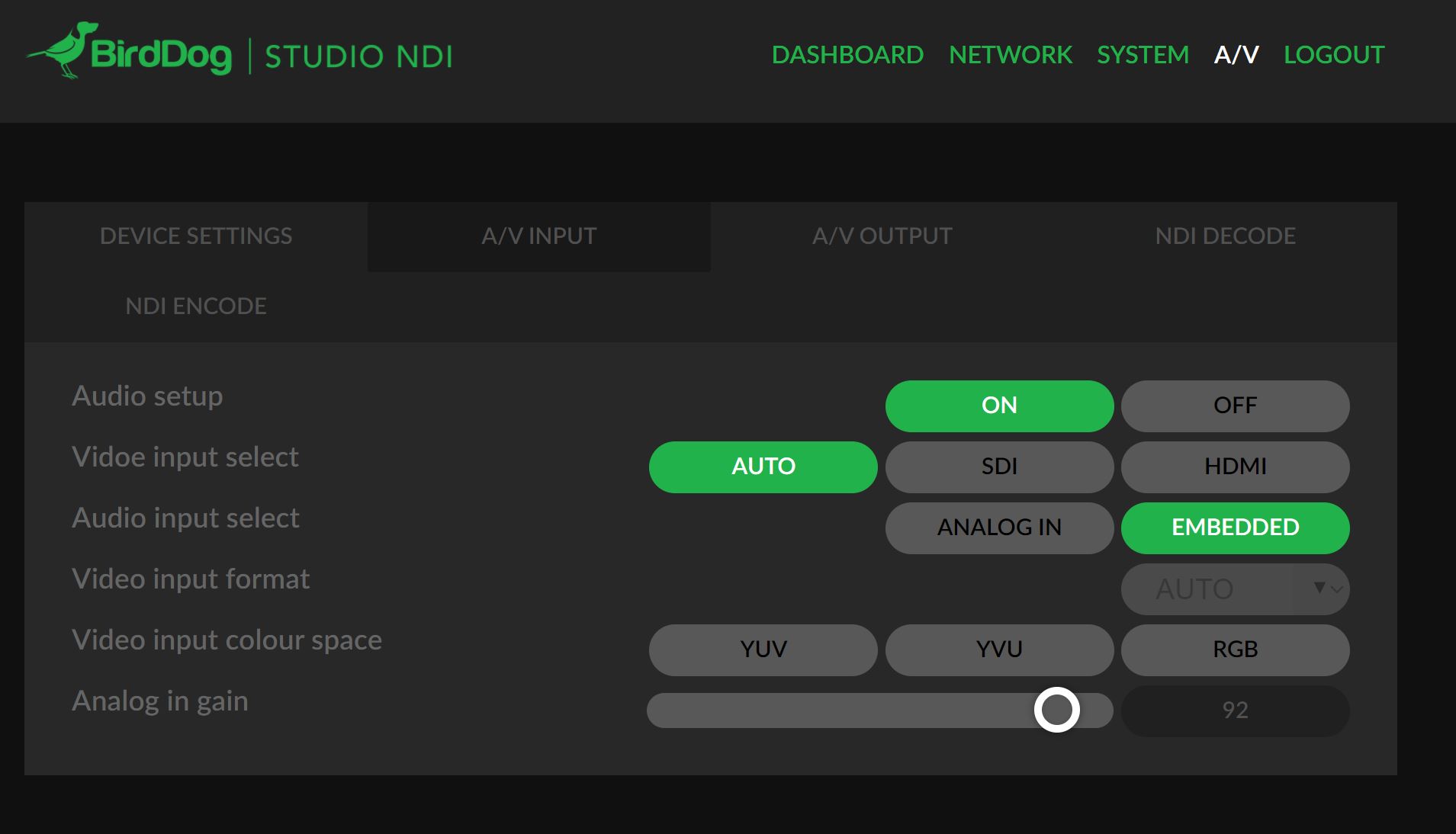

A/V ~ AV Input
System (Transport Method)

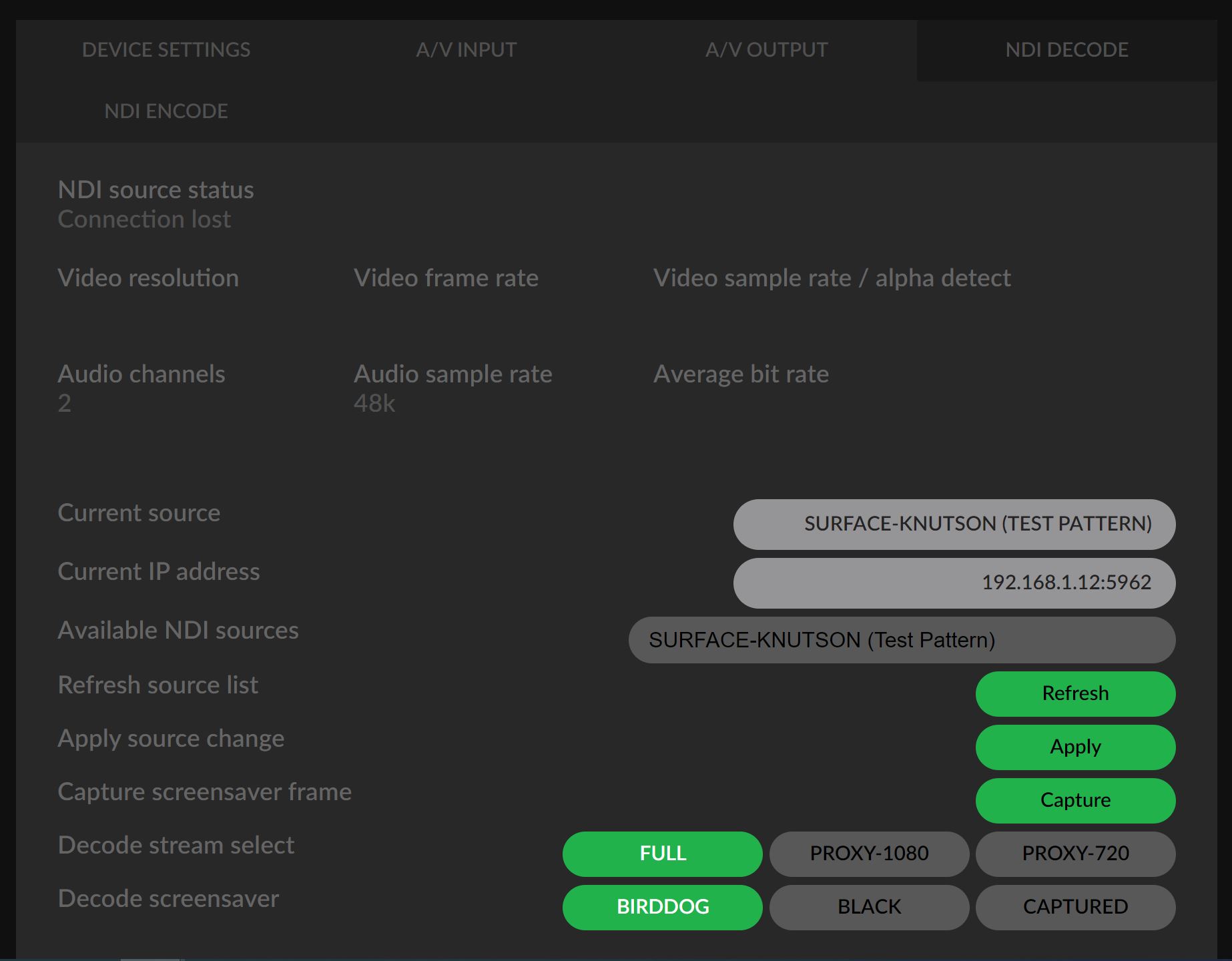

A/V ~ NDI Decode
A/V ~ A/V Output
A/V ~ NDI Decode
